LangGraph AI Agent Template

A comprehensive template project for building AI agents using LangGraph, demonstrating various agent patterns, tool integration, and real-world use cases.

What is LangGraph?

LangGraph is a framework built on top of LangChain that enables you to create stateful, multi-agent workflows. Unlike traditional chatbots that handle single interactions, LangGraph allows you to build complex AI systems that can:

Maintain conversation state across multiple turns
Use tools and external APIs
Implement complex reasoning patterns
Coordinate multiple AI agents
Handle cyclical workflows and conditional logic

This template demonstrates these capabilities through practical examples using a fictional system called "KABUTO" for troubleshooting scenarios.

Project Overview

This project showcases different AI agent patterns and architectures, from simple tool-calling agents to complex multi-agent systems. The examples use a fictional technical support scenario to demonstrate how agents can retrieve information from multiple data sources and provide structured responses.

Why This Template Exists

Most AI applications need to:

Access external information - LLMs don't have access to your specific data
Use tools - Perform actions beyond text generation
Maintain context - Remember previous interactions
Handle complex workflows - Break down tasks into manageable steps

This template provides working examples of all these patterns using LangGraph.

Prerequisites

Python 3.10+
uv - Modern Python package manager
GNU Make - For running common tasks
Docker - For running vector databases (optional)
Azure
Azure OpenAI - LLM API
Azure Cosmos DB - Data storage (optional)

Quick Start

1. Environment Setup

# Clone the repository
git clone https://github.com/ks6088ts-labs/template-langgraph.git
cd template-langgraph

# Install Python dependencies
uv sync --all-extras

# Create environment configuration
cp .env.template .env
# Edit .env with your API keys (Azure OpenAI, etc.)

2. Start Supporting Services (Optional)

For full functionality, start the vector databases:

# Start Qdrant and Elasticsearch using Docker
docker compose up -d

3. Initialize Data Sources

Set up Qdrant vector database:

uv run python scripts/qdrant_operator.py add-documents \
  --collection-name qa_kabuto \
  --verbose

Set up Elasticsearch search index:

uv run python scripts/elasticsearch_operator.py create-index \
  --index-name docs_kabuto \
  --verbose

Optional: Set up additional data sources:

# Azure AI Search
make create-ai-search-index

# Azure Cosmos DB
make create-cosmosdb-index

# Or use the operator scripts directly:
# uv run python scripts/ai_search_operator.py add-documents --verbose
# uv run python scripts/cosmosdb_operator.py add-documents --verbose

Project Structure

Core Components

data/ - Sample data for the fictional KABUTO system (PDFs, FAQs, troubleshooting guides)
template_langgraph/ - Main Python package containing all agent implementations
notebooks/ - Jupyter notebooks with interactive examples and explanations
scripts/ - Command-line tools for running agents
agent_operator.py - Main agent runner for production agents
demo_agents_operator.py - Runner for simple demo agents
Database/search operators (qdrant_operator.py, elasticsearch_operator.py, ai_search_operator.py, cosmosdb_operator.py)
LLM testing operators (azure_openai_operator.py, azure_ai_foundry_operator.py, ollama_operator.py)
Other utilities (dify_operator.py, otel_operator.py)

Agent Examples (`template_langgraph/agents/`)

This project includes several agent implementations, each demonstrating different LangGraph patterns. You can render their graphs to PNG via the CLI (see Deployment) and run them from the terminal or Makefile targets.

kabuto_helpdesk_agent/ — Start here. Prebuilt ReAct agent via create_react_agent. Key: ReAct, tool calling, prebuilt agents.
chat_with_tools_agent/ — Core implementation. Manual graph building equivalent to the helpdesk agent. Key: graph construction, state, nodes/edges.
issue_formatter_agent/ — Structured output. Extracts structured data via Pydantic. Key: structured output, validation, formatting.
task_decomposer_agent/ — Planning & decomposition. Breaks down complex tasks into steps. Key: planning, multi-step reasoning, conditional flows.
supervisor_agent/ — Multi-agent coordination. Supervisor orchestrates multiple specialists. Key: multi-agent coordination.
news_summarizer_agent/ — Web/YouTube summarization. Scrapes content, summarizes to StructuredArticle, and notifies. Key: fan-out subtasks, notifier/scraper/summarizer plugins.
image_classifier_agent/ — Vision classification. Classifies local images and notifies results. Key: LLM-based image classification, parallel subtasks.

Demo Agents (`template_langgraph/agents/demo_agents/`)

Additional simple agents for learning and demonstration:

weather_agent.py — Simple tool-calling agent. Basic ReAct pattern with mock weather search tool. Key: tool calling, basic agent pattern.
multi_agent.py — Multi-agent coordination. Demonstrates agent-to-agent handoff using transfer functions. Key: agent coordination, workflow transfer.
parallel_rag_agent/ — Task decomposition with parallel execution. Breaks down querys into tasks and processes them in parallel. Key: parallel processing, task decomposition, Send operations.

Supporting Modules

template_langgraph/llms/: LLM wrappers (Azure OpenAI, Azure AI Foundry, Ollama)
template_langgraph/tools/: Tool implementations used by agents
Azure AI Search (ai_search_tool.py)
Azure Cosmos DB Vector Search (cosmosdb_tool.py)
Dify Workflow (dify_tool.py)
Elasticsearch full-text search (elasticsearch_tool.py)
MCP client (Model Context Protocol) (mcp_tool.py)
Qdrant vector search (qdrant_tool.py)
SQL Database toolkit (conditional; enabled when DSN provided) (sql_database_tool.py)
template_langgraph/internals/: Internal utilities
Notifiers (Mock/Slack)
Scrapers (Mock/HTTPX/YouTube transcript)
Summarizers (Mock/LLM structured output)
Loaders (CSV/PDF), OTEL helpers

Running the Examples

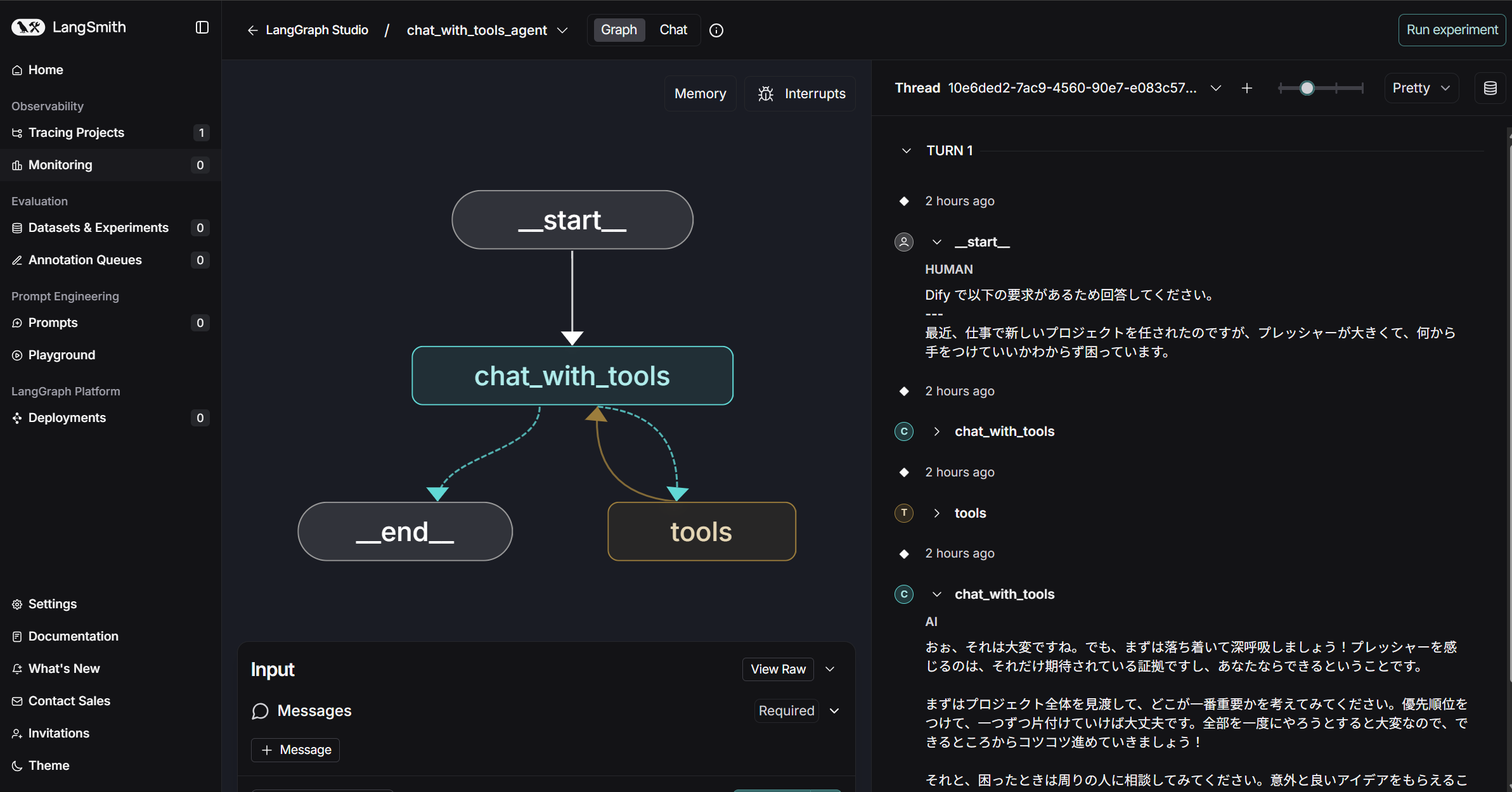

Option 1: LangGraph Studio (Recommended for Development)

LangGraph Studio provides a visual interface for developing and debugging agents:

uv run langgraph dev

This opens a web interface where you can:

Visualize agent workflows
Step through executions
Debug state transitions
Test different inputs

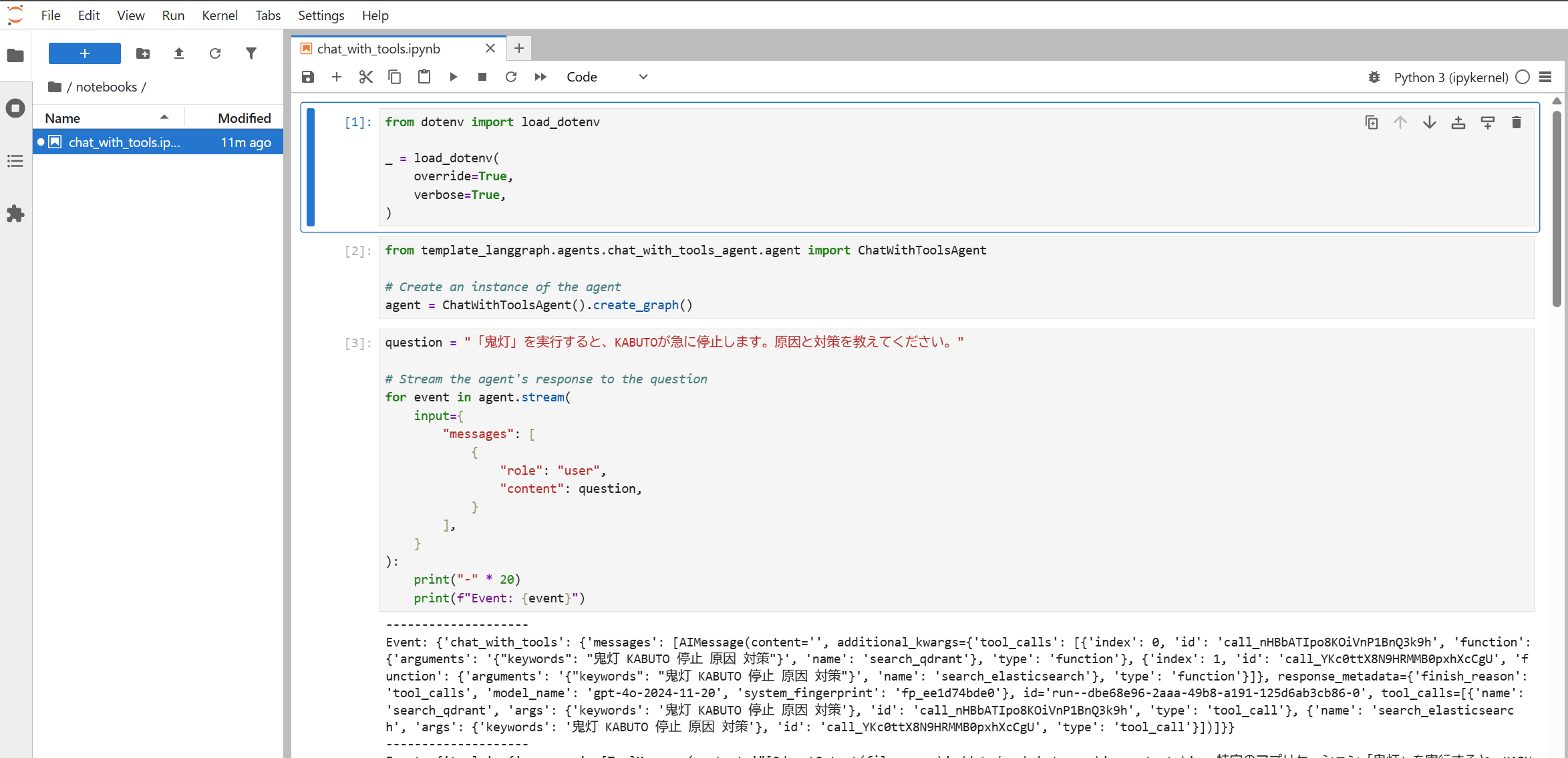

Option 2: Jupyter Notebooks (Best for Learning)

Interactive notebooks with explanations and examples:

uv run jupyter lab
# Navigate to http://localhost:8888 and open notebooks/*.ipynb

Option 3: Command Line (Quick development)

Run agents from the terminal:

uv run python scripts/agent_operator.py run \
  --name "chat_with_tools_agent" \
  --question "KABUTO startup issue: screen flashes purple and system freezes" \
  --verbose

Example output showing the agent's reasoning process:

Event: {'chat_with_tools': {'messages': [AIMessage(content='', tool_calls=[
  {'name': 'search_elasticsearch', 'args': {'keywords': 'KABUTO startup purple flashing freeze'}},
  {'name': 'search_qdrant', 'args': {'keywords': 'KABUTO startup purple flashing freeze'}}
])]}}

Event: {'tools': {'messages': [ToolMessage(content='Found documentation about startup protocol...')]}}

Event: {'chat_with_tools': {'messages': [AIMessage(content='
### Problem Analysis
The purple screen flashing during KABUTO startup indicates a "Shinobi Protocol" initialization failure...

### Solution
1. **Disconnect peripheral devices**: Unplug all connected devices for 5+ seconds
2. **Clear external clock cache**: This resolves clock synchronization issues
3. **Restart KABUTO**: Use the "Dragon Ball" button for 5+ seconds if needed
')]}}

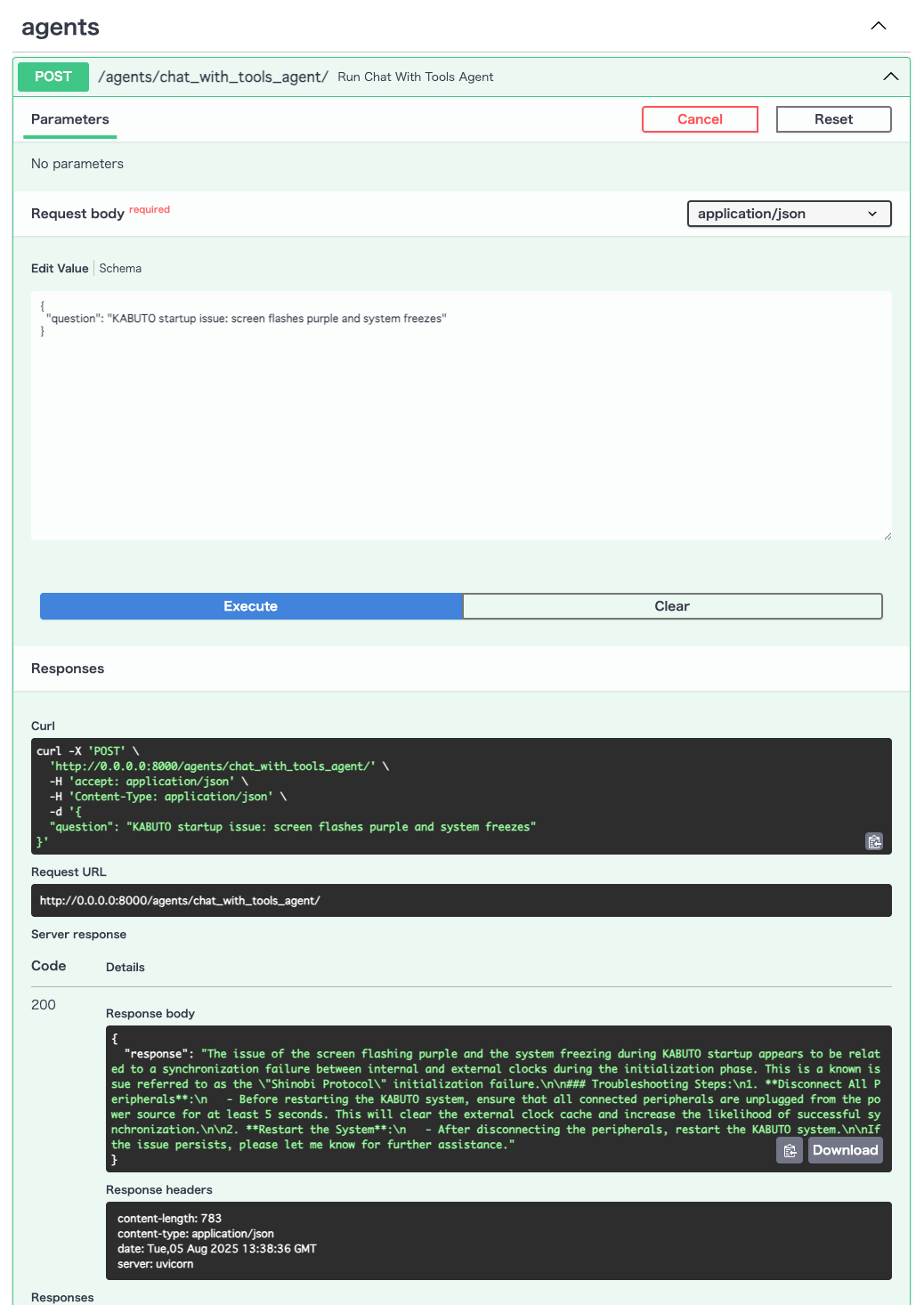

Option 4: FastAPI (Production-ready)

Run the FastAPI server to expose the agent as an API:

uv run fastapi run \
  --host "0.0.0.0" \
  --port 8000 \
  --workers 4 \
  template_langgraph/services/fastapis/main.py
# Access the API at http://localhost:8000/docs via Swagger UI

This allows you to interact with the agent programmatically via HTTP requests.

Option 5: Streamlit (PoC demo)

Run the Streamlit app to expose the agent as a web interface:

uv run streamlit run \
  template_langgraph/services/streamlits/main.py

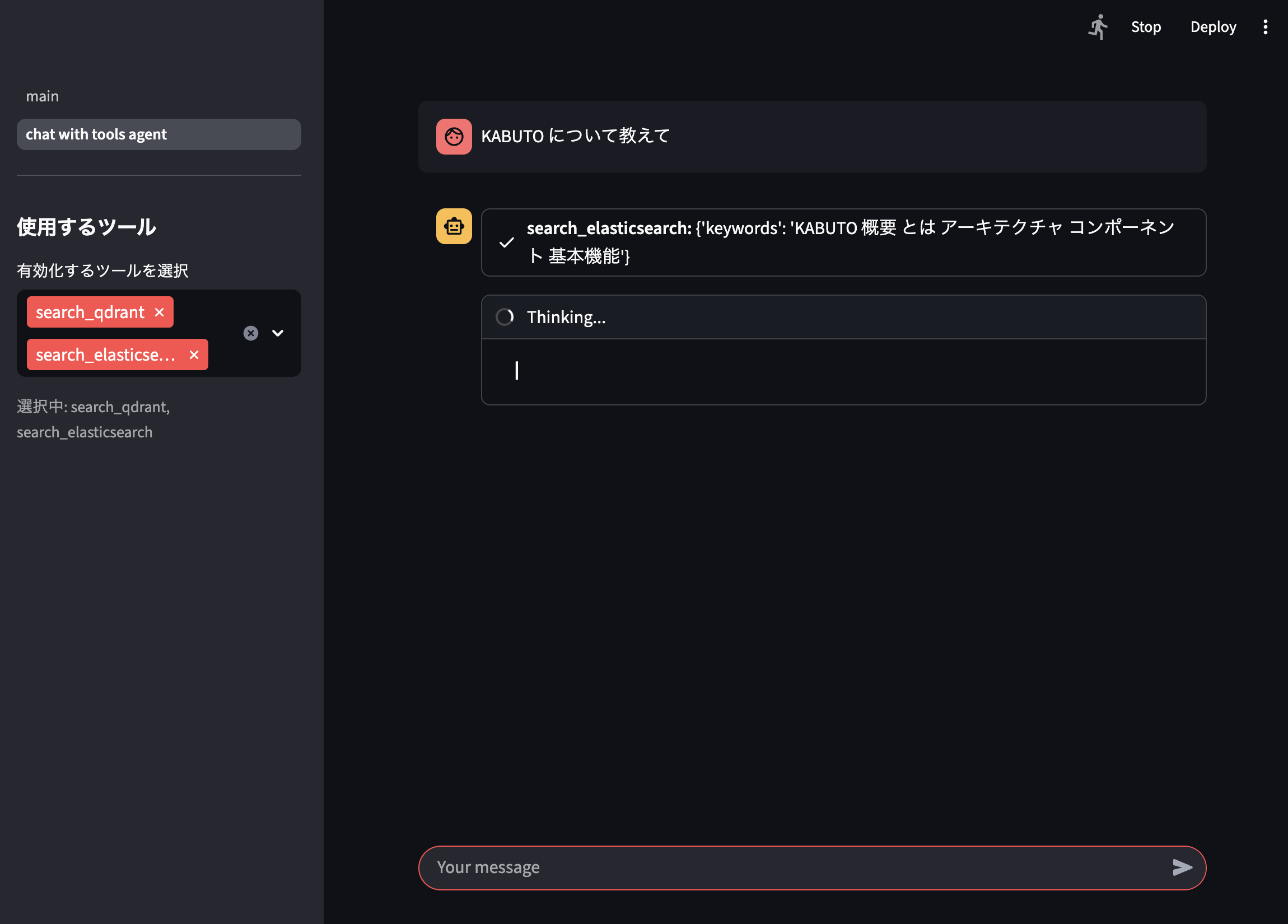

Demonstration of the Streamlit app:

More agent runs

Issue formatter (structured output):

uv run python scripts/agent_operator.py run \
  --name issue_formatter_agent \
  --question "KABUTO login fails...（省略）" \
  --verbose

News summarizer (fan-out over URLs):

uv run python scripts/agent_operator.py news-summarizer-agent \
  --prompt "日本語で3行に要約してください" \
  --urls "https://example.com/a,https://example.com/b" \
  --verbose

Image classifier (classify local images):

uv run python scripts/agent_operator.py image-classifier-agent \
  --prompt "画像の内容を3行で説明してください" \
  --file-paths "docs/images/fastapi.png,docs/images/streamlit.png" \
  --verbose

Demo agent runs

Weather agent (simple tool calling):

uv run python scripts/demo_agents_operator.py weather-agent \
  --query "What's the weather in Japan?" \
  --verbose

Multi agent (agent coordination):

uv run python scripts/demo_agents_operator.py multi-agent \
  --query "What's the weather in Tokyo?" \
  --verbose

Parallel rag agent (task decomposition):

uv run python scripts/demo_agents_operator.py parallel-rag-agent \
  --query "Plan information gathering strategy for launching a software company" \
  --verbose

Makefile shortcuts are also available (e.g., make run-chat-with-tools-agent, make run-issue-formatter-agent, make run-news-summarizer-agent, make run-image-classifier-agent).

Key Concepts Demonstrated

1. ReAct Pattern (Reasoning + Acting)

The foundation of modern AI agents - the ability to reason about what to do, take actions, and reason about the results.

2. Tool Calling

How agents can use external functions to:

Search databases (Elasticsearch, Qdrant)
Call APIs
Process files
Execute calculations

3. State Management

How LangGraph maintains context across multiple interaction steps, enabling complex multi-turn conversations.

4. Conditional Workflows

Using graph structures to create branching logic based on agent decisions or external conditions.

5. Multi-Agent Systems

Coordinating multiple specialized agents to handle complex tasks that require different expertise.

Data Sources Explained

The project uses fictional data about a system called "KABUTO" to demonstrate real-world scenarios:

data/docs_kabuto.pdf - Technical documentation (simulates user manuals)
data/qa_kabuto.csv - FAQ database (simulates past support tickets)
data/docs_kabuto.md - Additional documentation

This fictional data serves a purpose: it proves that the AI agents can work with information that isn't in the LLM's training data, demonstrating the value of retrieval-augmented generation (RAG).

Tools and configuration

The default toolset is configured in template_langgraph/tools/common.py and includes search, vector, workflow, SQL (optional), and MCP tools. Tools are enabled/configured via environment variables in .env:

Azure OpenAI
AZURE_OPENAI_ENDPOINT, AZURE_OPENAI_API_KEY, AZURE_OPENAI_API_VERSION
AZURE_OPENAI_MODEL_CHAT, AZURE_OPENAI_MODEL_EMBEDDING, AZURE_OPENAI_MODEL_REASONING
Optional Entra ID auth: AZURE_OPENAI_USE_MICROSOFT_ENTRA_ID=true
Azure AI Foundry
AZURE_AI_FOUNDRY_INFERENCE_ENDPOINT, AZURE_AI_FOUNDRY_INFERENCE_API_VERSION
AZURE_AI_FOUNDRY_INFERENCE_MODEL_CHAT
Ollama (local)
OLLAMA_MODEL_CHAT
Azure AI Search
AI_SEARCH_ENDPOINT, AI_SEARCH_KEY, AI_SEARCH_INDEX_NAME
Azure Cosmos DB (vector)
COSMOSDB_HOST, COSMOSDB_KEY, COSMOSDB_DATABASE_NAME, COSMOSDB_CONTAINER_NAME, COSMOSDB_PARTITION_KEY
Elasticsearch
ELASTICSEARCH_URL (default http://localhost:9200)
Qdrant
QDRANT_URL (default http://localhost:6333)
SQL Database (optional)
SQL_DATABASE_URI (if empty, SQL tools are disabled)
Dify
DIFY_BASE_URL, DIFY_API_KEY
MCP (Model Context Protocol)
MCP_CONFIG_PATH (JSON config; tools loaded dynamically)
Notifier/Scraper/Summarizer switches
NOTIFIER_TYPE (mock/slack), NOTIFIER_SLACK_WEBHOOK_URL
SCRAPER_TYPE (mock/httpx/youtube_transcript)
SUMMARIZER_TYPE (mock/llm)

See .env.template for a complete list. Most values have sensible local defaults for Docker-based development.

MCP tools quickstart

If MCP_CONFIG_PATH is set to a config file, the agent will automatically load MCP server tools. You can inspect/test MCP servers locally:

make mcp-inspector

Next Steps

Start with the basics: Run the kabuto_helpdesk_agent example
Try demo agents: Explore the simple patterns with weather_agent, multi_agent, and parallel_rag_agent
Understand the implementation: Compare it with chat_with_tools_agent
Explore advanced patterns: Try the task decomposer and supervisor agents
Build your own: Use this template as a starting point for your use case

Observability (optional)

OpenTelemetry helpers are available (template_langgraph/internals/otel_helpers.py). Try a quick span flow:

uv run python scripts/otel_operator.py run -q "health check" -v

Learning Resources

Architecture Examples

This template demonstrates several proven agent architectures:

Single Agent with Tools - Basic tool-calling pattern (weather_agent)
ReAct Agent - Reasoning and acting in loops (kabuto_helpdesk_agent)
Structured Output Agent - Returning formatted data (issue_formatter_agent)
Planning Agent - Breaking down complex tasks (task_decomposer_agent)
Multi-Agent Systems - Coordinating multiple agents (supervisor_agent, multi_agent)
Parallel Processing - Concurrent task execution (parallel_rag_agent)

Each pattern is implemented with clear examples and documentation to help you understand when and how to use them.
